Conference rooms in oncology practices handle conversations that families remember for the rest of their lives. Clear glass walls might look modern, but they offer zero privacy for the discussions happening on the other side. cCare in San Marcos needed frosted vinyl on their conference room panels, and they needed it done right. North Coast Signs, based in Vista, handled the project using Avery A5861 Etched Glass Cast Vinyl on two glass panels with a reverse cut logo centered in the design.
The layout called for frosted stripes at the top and bottom of the center panel, each measuring six inches high by fifty-seven and a half inches wide. The center panel itself measured sixty inches high by fifty-seven and a half inches wide, with a one-inch gap between the stripes and the logo area. The logo was thirty-six inches wide by fourteen point six inches tall, reverse cut so the glass shows through where the brand mark appears, while frosting covers everything around it.
Cast Vinyl Does the Job Right
Avery A5861 is a two-mil cast vinyl with an etched glass appearance that holds up in medical environments. Cast vinyl keeps its dimensions over time because of how it is manufactured; calendered alternatives stretch during production and shrink after installation. In a conference room that gets used daily, with cleaning crews wiping down surfaces and hands touching near the glass, the film needs to stay where it was applied without curling at the edges.
Stripe Placement Based on Sightlines
The six-inch stripes were positioned to block sightlines at seated height, which is where privacy matters most in a conference room setting. Standing visitors can still see that the room is occupied, but anyone sitting inside remains obscured from the hallway. The one-inch gap between stripes and logo keeps the design from feeling crowded and gives the brand mark room to breathe.
What Does Reverse Cut Mean?
A reverse cut removes the logo shape from the frosted vinyl, leaving clear glass where the brand appears. This creates contrast without adding color or additional materials to the installation. The technique requires tight tolerances because any misalignment shows up as a gap or overlap where frosted vinyl meets clear glass. We plotted and cut the graphics at our Vista shop before transporting them to San Marcos for installation.
Glass Application Takes Patience
Bubbles, debris, and adhesion problems all trace back to contamination between the vinyl and the glass. We clean the surface multiple times, verify temperature and humidity, then apply the vinyl with squeegee pressure from center to edge. A single speck of dust trapped under frosted film becomes a permanent visible defect. Rushing this step is how installers end up coming back to redo work they already billed for.
Medical Spaces Deserve Better

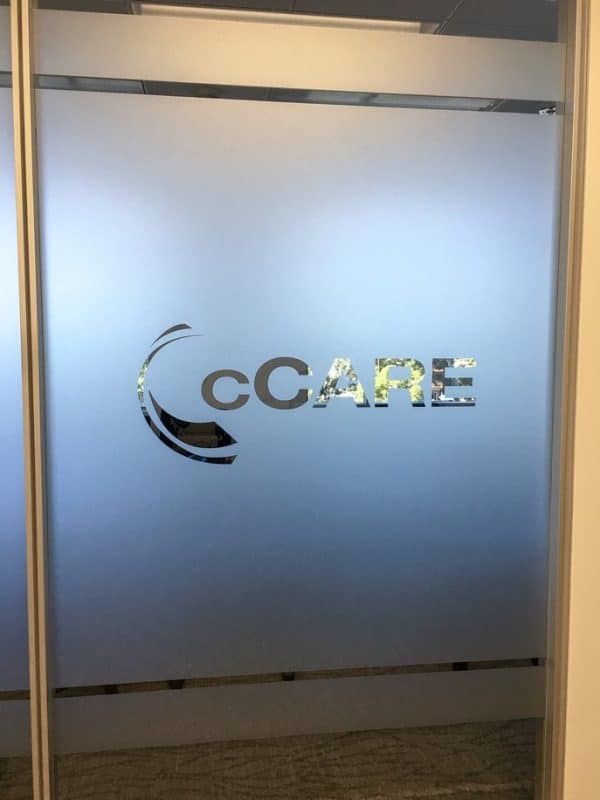

The finished installation at cCare in San Marcos delivers privacy for patients during difficult conversations while keeping the brand visible and the space feeling open. North Coast Signs, based in Vista, treats medical signage with the attention these environments demand. Call us at (760) 536-5454 if your practice needs conference room vinyl, privacy film, or branded glass graphics.
