Carlsbad, CA – Sign Company Designs Custom Blade Sign for Retail Storefront

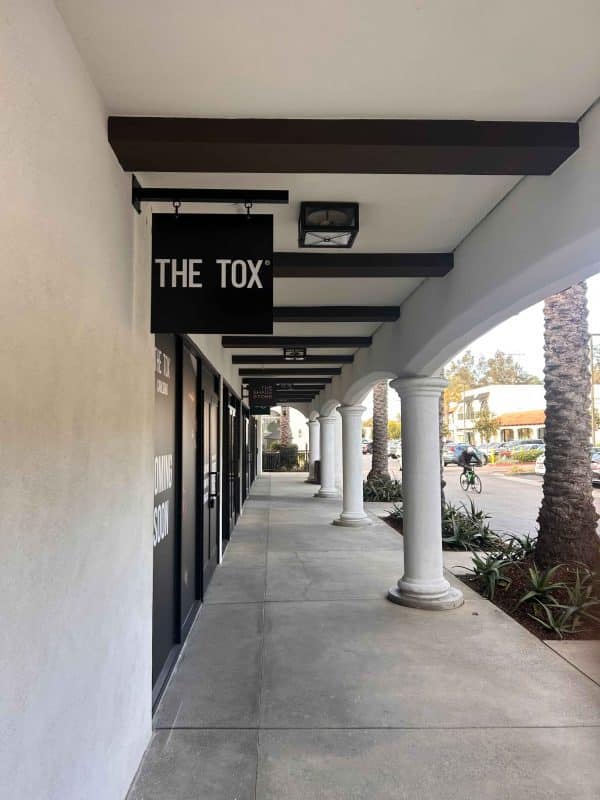

Somewhere in a lease agreement for a Carlsbad retail space, there’s a line that says the tenant can hang a blade sign from the arm bracket on the building face. The bracket is already there, bolted to the exterior wall, waiting. What you hang from it will either pull foot traffic toward your door from both directions or blend into the row of signs above it until nobody notices it anymore. North Coast Signs is based in Vista, and we designed a double-sided blade sign for The Tox’s new Carlsbad storefront that was built to do the first thing and resist the second for as long as the lease runs.

The panel is 3mm thick black ACM, which stands for aluminum composite material. Two thin aluminum skins are bonded to a solid polyethylene core, and that sandwich structure gives the panel rigidity that single-skin aluminum, PVC, and foam board can’t match at this thickness. Blade signs hang perpendicular to a building and catch wind head-on, so the panel material has to resist bowing, flexing, and vibrating under pressure without adding so much weight that it stresses the arm bracket. We’ve pulled down blade signs made from cheaper substrates after less than a year because the panel warped at the drill points and the grommets pulled through. ACM at 3mm holds its shape through heat cycling, wind load, and the constant micro-movement that comes with hanging off a building in Carlsbad’s coastal air.

Matte White on Black for Sidewalk Contrast

The lettering is matte white vinyl on the black ACM surface, and that combination does specific work at a distance. Blade signs sit above eye level and perpendicular to the walking path, which means a pedestrian catches them in peripheral vision first. High contrast between letter and background is what registers in that peripheral glance, and white on black delivers the widest contrast range possible. We went matte on the vinyl because Carlsbad’s south-facing retail corridors take direct afternoon sun, and gloss vinyl on a sun-hit surface throws a reflective band that washes out the lettering from certain angles. Matte vinyl absorbs light rather than reflecting it, so the letters read consistently from morning shade through afternoon glare.

Double-Sided Because Foot Traffic Has Two Directions

A single-sided blade sign serves half the corridor. Every person approaching from the opposite direction sees a blank panel or a raw backside, and that empty face communicates something you don’t want it to. The Tox’s sign carries the same matte white lettering on both faces of the black ACM, so the message reads identically from either approach. Building this double-sided means matching the vinyl registration on both sides so the lettering sits at the same height, same spacing, same margin from every edge. If one side is even slightly off from the other, the mismatch shows the moment anyone walks past and glances back.

How Grommets Fail and How We Prevent It

Each mounting hole is drilled through the ACM and fitted with a black grommet that matches the panel face. The grommet placement determines weight distribution across the arm bracket, and the distance from each hole to the panel edge determines whether the ACM tears under stress. Too close to the edge and wind oscillation rips the hole outward over months of swinging. Too far inward and the sign doesn’t seat flush against the bracket arm. We reinforce each grommet hole with a backing washer on the rear side of the panel to spread load across a wider surface area, because the grommet itself is a stress concentrator and ACM, for all its rigidity, will fatigue at a point load over thousands of wind cycles.

The Arm Bracket Angle You Should Check Before Anything Goes Up

Before we hang any blade sign, we check the arm bracket pitch with a level. If the arm slopes forward by even a couple of degrees, the sign tilts toward the sidewalk and looks like it’s separating from the building. We’ve seen brackets installed by general contractors who didn’t check pitch because the sign wasn’t in their scope. Shimming a bracket to level takes minutes; living with a crooked blade sign for the duration of a Carlsbad lease takes something else entirely.

Your Bracket Is Waiting

North Coast Signs builds blade signs in Vista for Carlsbad retail storefronts that face coastal wind, direct sun, and daily foot traffic from both directions. If your landlord gave you an arm bracket and you need something on it that won’t warp, tilt, or tear at the grommets, call (760) 536-5454 and we’ll build it from the bracket angle out.
